Building a Real-World RAG Pipeline with pgvector

When a business wants an AI assistant to answer accurately from internal documents — contracts, procedures, product policies — the answer is RAG (Retrieval-Augmented Generation). This article explains how we built the RAG pipeline in Assistant Core, from ingest to production query.

The Problem with a Plain LLM#

LLMs are trained on public data — they don't know your products, your internal processes, or the latest order status. When asked directly about data that isn't in their training set, an LLM will "hallucinate" — producing answers that look plausible but are completely wrong.

Fine-tuning is one option, but it's expensive, slow to update, and a poor fit for frequently changing data. RAG solves the problem differently: retrieve first, answer second.

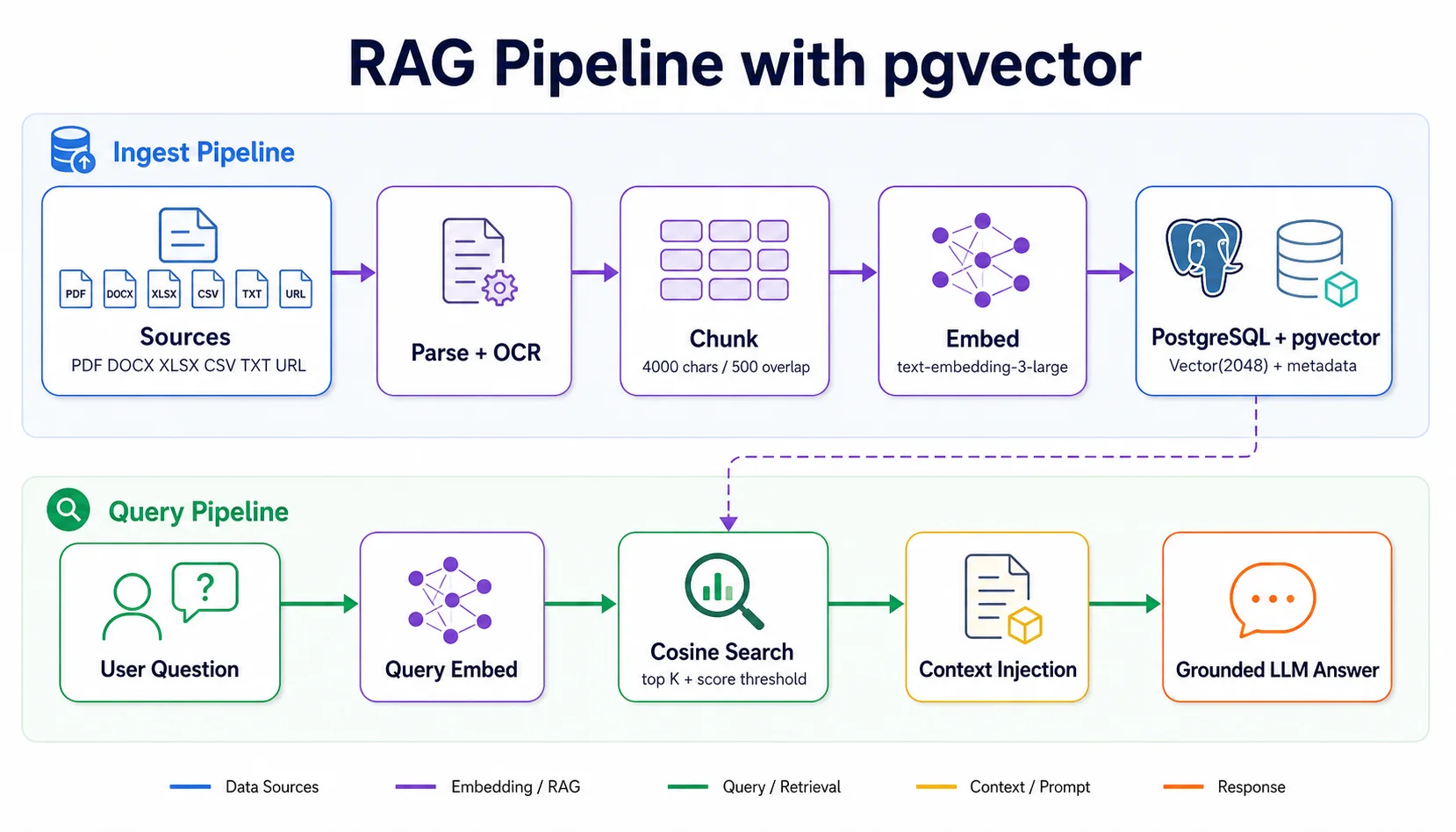

RAG's Two-Stage Architecture#

RAG splits into two independent pipelines:

• Ingest Pipeline — runs offline whenever a new document arrives: Document → Parse → Chunk → Embed → Store in pgvector
• Query Pipeline — runs in real time on every request: Question → Embed → Cosine Search → Top-K chunks → Inject into prompt → LLM answers

Ingest Pipeline — Implementation Details#

We support 7 input formats: PDF, DOCX, XLSX, CSV, TXT, web URLs (via Firecrawl), and plain text. Each type has its own parser to extract clean text before chunking.

# Chunking strategy in Assistant Core
CHUNK_SIZE = 4000       # characters
CHUNK_OVERLAP = 500     # overlap so context isn't lost

# Embedding
EMBEDDING_MODEL = "text-embedding-3-large"
EMBEDDING_DIMENSIONS = 2048  # reduced from 3072

async def ingest_document(file_path: str, kb_id: str):
    # 1. Parse
    text = await parse_document(file_path)

    # 2. Chunk with overlap
    chunks = chunk_text(text, CHUNK_SIZE, CHUNK_OVERLAP)

    # 3. Embed batch (128 chunks/request)
    embeddings = await embed_batch(chunks)

    # 4. Store in pgvector
    await store_chunks(chunks, embeddings, kb_id)

Batch embedding is important for keeping API costs down. At 128 chunks per request, a 200-page document needs only ~20 API calls instead of ~500.

pgvector — Vector Search Right Inside PostgreSQL#

Instead of using Pinecone or Weaviate, we chose pgvector — a PostgreSQL extension for vector search. The big advantage: no separate service to manage, ACID transactions are still guaranteed, and metadata filtering uses plain SQL.

-- Schema for document chunks
CREATE TABLE document_chunks (
    id          UUID PRIMARY KEY DEFAULT gen_random_uuid(),
    kb_id       UUID NOT NULL REFERENCES knowledge_bases(id),
    content     TEXT NOT NULL,
    embedding   VECTOR(2048),
    metadata    JSONB DEFAULT '{}'
);

-- IVFFlat index for query speed
CREATE INDEX ON document_chunks
USING ivfflat (embedding vector_cosine_ops)
WITH (lists = 100);

-- Query: semantic search with metadata filter
SELECT content, 1 - (embedding <=> $query_vec) AS score
FROM document_chunks
WHERE kb_id = $kb_id
  AND (metadata->>'doc_type') = 'policy'  -- filter
ORDER BY embedding <=> $query_vec
LIMIT 5;

Query Pipeline — Real-Time Flow#

When a user sends a question, the pipeline runs three steps in about ~150ms:

1. Embed query — using the same model as ingest (text-embedding-3-large)
2. Cosine search — find the 5–8 nearest chunks in pgvector
3. Inject context — insert the chunks into the system prompt so the LLM answers with grounding

# Query pipeline
async def query_knowledge_base(question: str, kb_id: str) -> str:
    # Embed question
    q_embedding = await embed_text(question)

    # Semantic search
    chunks = await pgvector_search(
        embedding=q_embedding,
        kb_id=kb_id,
        top_k=5,
        min_score=0.75
    )

    # Build grounded prompt
    context = "\\n---\\n".join([c.content for c in chunks])
    system_prompt = f"""Answer based on the following context:

{context}

If the information is not in the context, say so clearly."""

    return await llm.chat(system_prompt, question)

Production Tips from Real Experience#

• Chunk size of 3000–4000 characters works best for enterprise documents. Too small loses context; too large introduces noise.
• Overlap of 400–600 characters ensures no information is lost at chunk boundaries.
• A minimum score threshold of 0.70–0.75 filters out irrelevant chunks.
• Cache embeddings of common questions in Redis (TTL 1 hour) to cut latency by ~40%.
• Metadata tagging at ingest time lets you filter by document type, department, or update date.

Measured Results#

With this pipeline, the assistant answers accurately from the internal knowledge base, cites specific sources, and almost never hallucinates. In a test of 500 questions about product policy, accuracy reached 91% compared to 34% with a plain LLM and no RAG.
